Flow Control Check Valves
Hydraulic and pneumatic system flow regulation
- Corrosive resident stainless steel
- Pressure rated up to 4350 psi
- Various cracking pressures across the standard range
- Forward-flow and reverse-flow valve types
How Check Valves work
Koenig one-way Check Valves allow for the flow of fluid in one direction and prevent backflow in the other. They come in outside diameters of Ø5.5mm and 8.0mm with forward and reverse flow options.
The stainless steel check valves have a max working pressure of 4,350psi in check direction and cracking pressures of 0.0 – 30psi
Series BR 8.0mm Reverse Check Valve
Sleeve: Stainless Steel 1.4305 / AISI 303
Ball: Stainless Steel 1.3541 / AISI 420C
Pressure: Max. Working Pressure in Check Direction 4061 psi

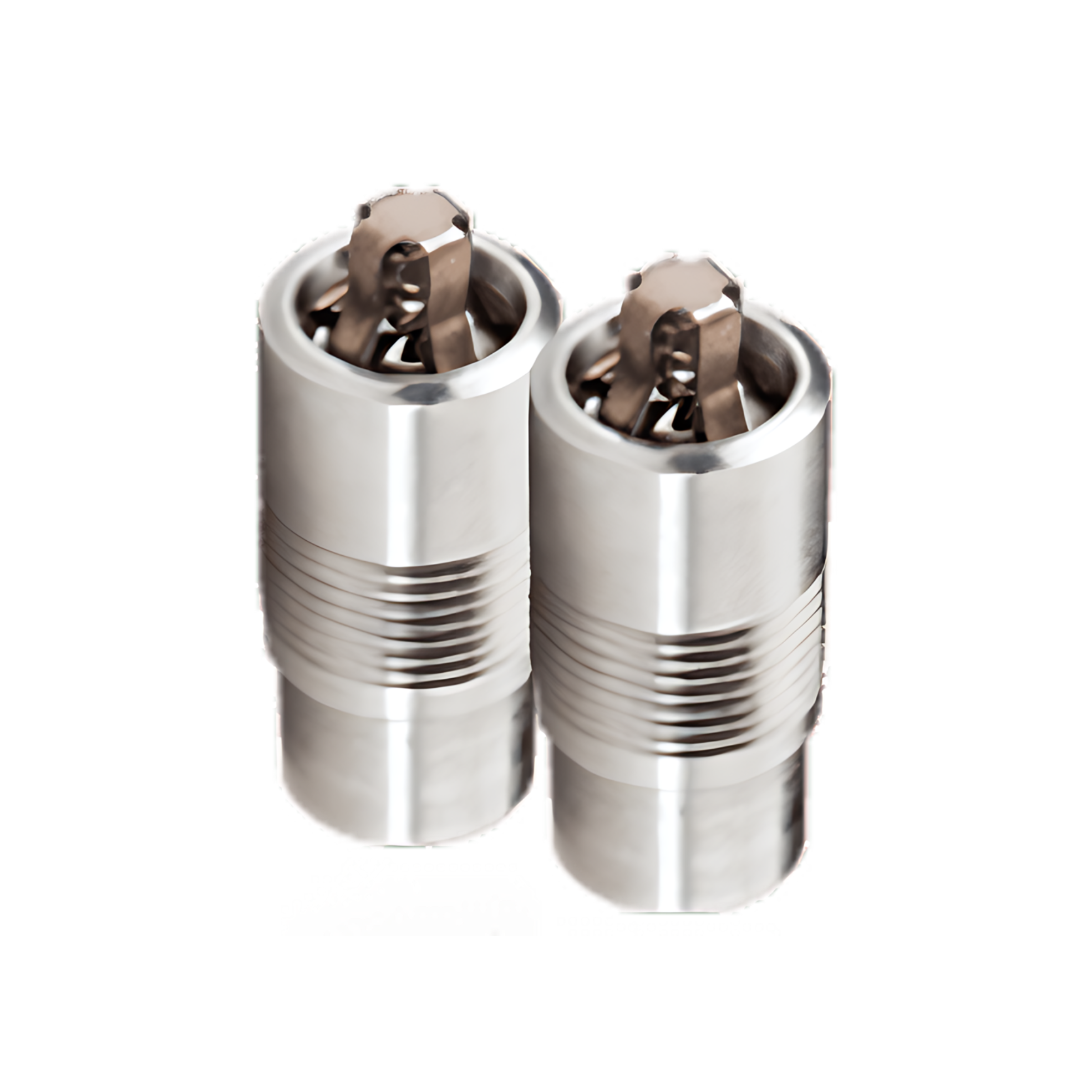

Series BF 8.0mm Forward Check Valve
Sleeve: Stainless Steel 1.4305 / AISI 303
Ball: Stainless Steel 1.3541 / AISI 420C
Pressure: Max. Working Pressure in Check Direction 4061 psi
Series BR 5.5mm Reverse Check Valve
Sleeve: Stainless Steel 1.4305 / AISI 303
Ball: Stainless Steel 1.3541 / AISI 420C
Pressure: Max. Working Pressure in Check Direction 4061psi
Series BF 5.5mm Forward Check Valve
Sleeve: Stainless Steel 1.4305 / AISI 303
Ball: Stainless Steel 1.3541 / AISI 420C
